Jewelry white wax casting 405nm LCD/LED 3D printer Resin

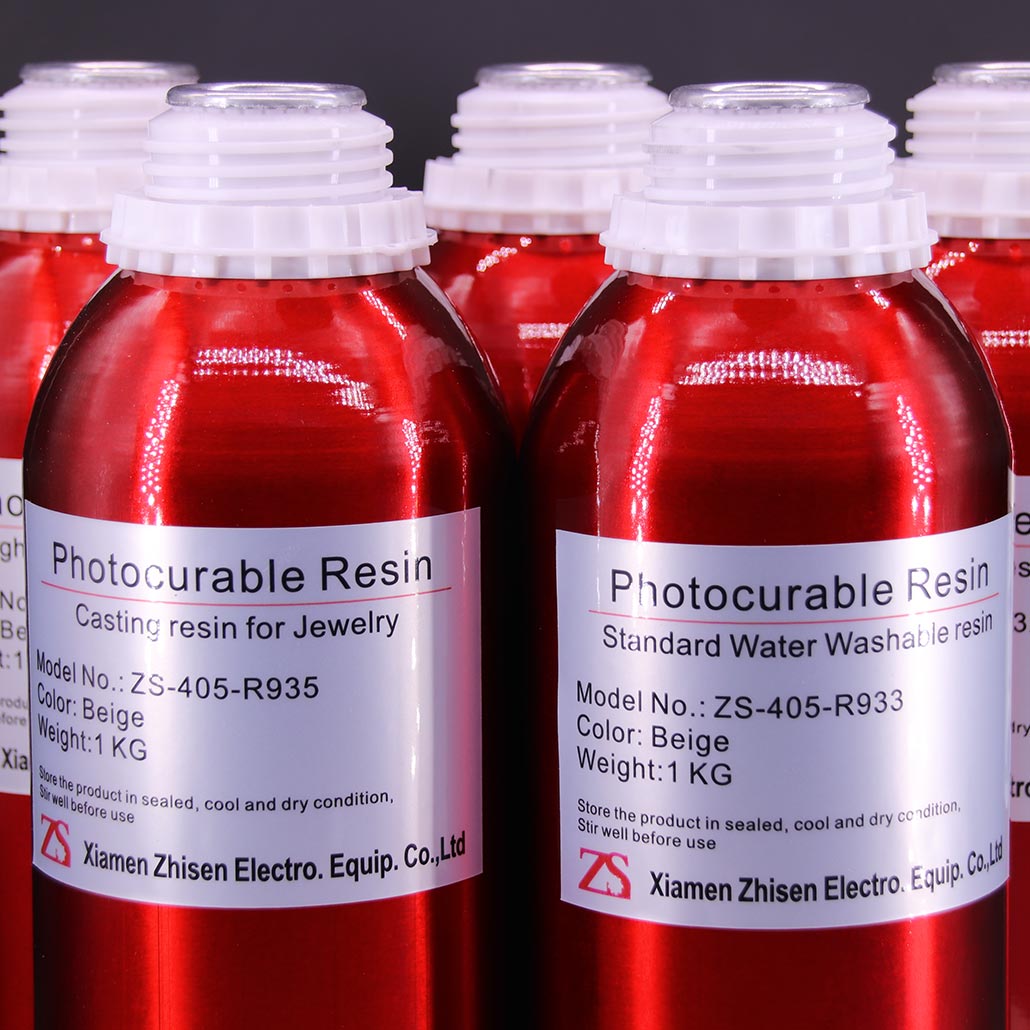

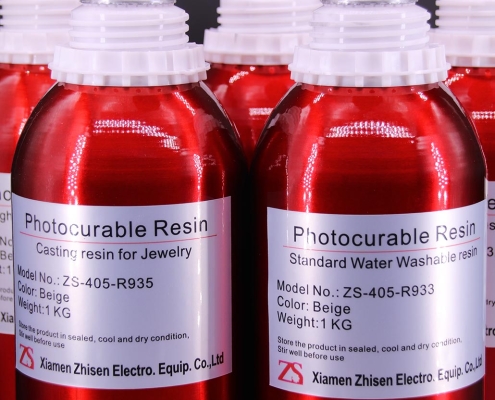

Product Model: ZS-405-R935

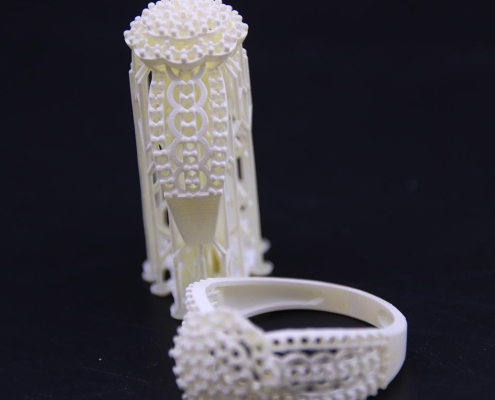

ZS-405-R935 3D printing resin material specifically designed for the jewelry casting industry, with a transparent yellow color that turns into wax white when fully cured.

With a wax content of up to 80%, it is specifically designed for casting. A high proportion of wax content will make the product surface smooth but very soft. We will provide post-processing guidelines to make it white and stronger, which is very suitable for gold casting.

It has the following characteristics:

High wax content, low molding shrinkage rate
High precision, high surface quality
Stable combustion, gypsum is not easily damaged
Low water absorption rate, not easy to absorb water and expand
Low ash residue, high casting quality

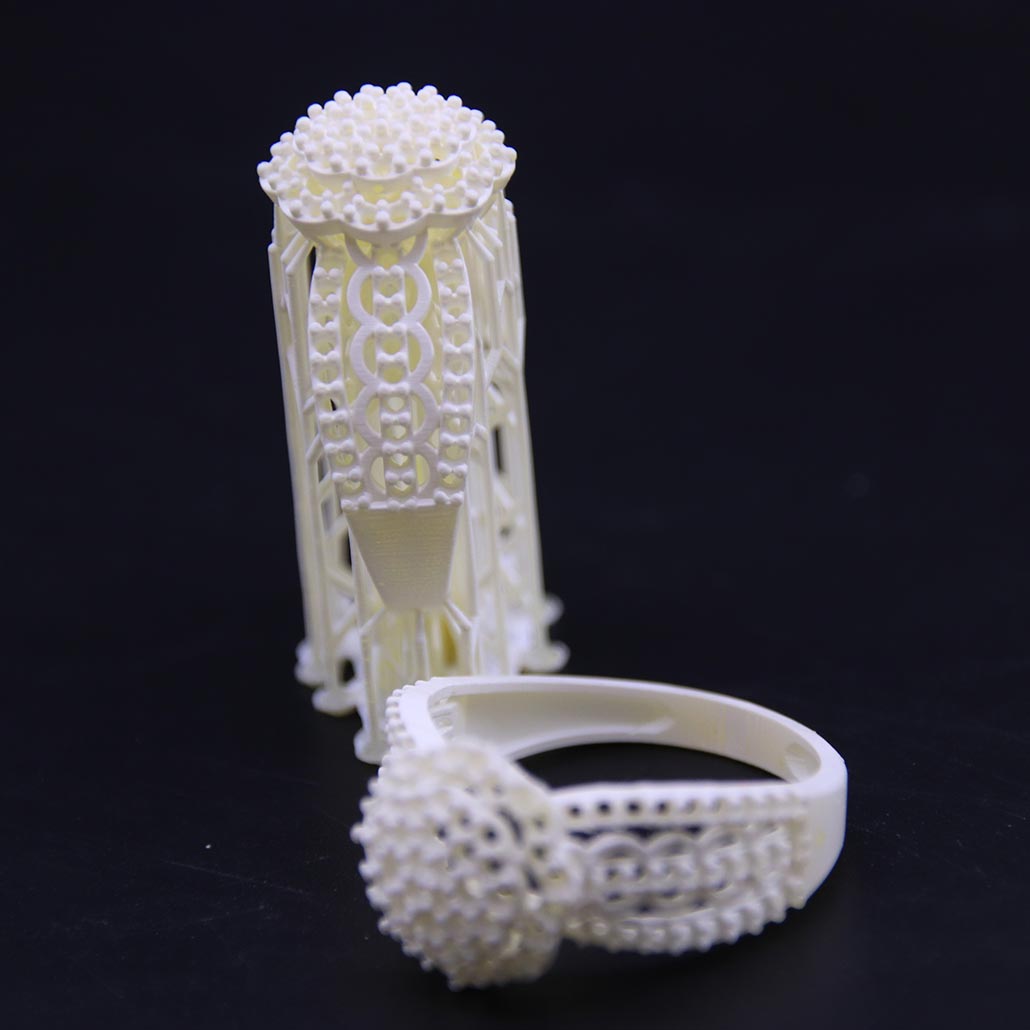

Recommended for casting metals such as gold and silver
We have other 405 resins available. Please consult us if needed

Get A Quote

Technical Parameters:

1.Technical Parameters and Performance Index

Liquide Performance Index

Test Items	Value
Types	LCD light curing resin
Number	ZS-405-R935
Color	White
Viscosity (25 °C) ASTM D1084	200-300 cps
Use wavelength	405nm

Product Performance Index

Test Items	Detection method	ZS-406-R935

2.Printing Parameter Settings

Layer height	Exposure time	Bottom exposure time	Film
0.05mm	5.5s~6.5s	30s~40s	NFEF/ACF
Bottom Layer Count	Transition Layer Count	Rest Time After Lift	Rest Time After Retract
6	10	2s	2s

3.Washing and Post-Curing Info

Soak R935 prints in alcohol (95%) for 30 minutes.
Put R935 prints and alcohol (95%) into the ultrasonic machine for 5 minutes.
Put R935 prints in 90~100°C water, and then cure in a high power UV curing box for 30 minutes.
Dry the R935 prints (important).
Store to avoid exposure to the air.

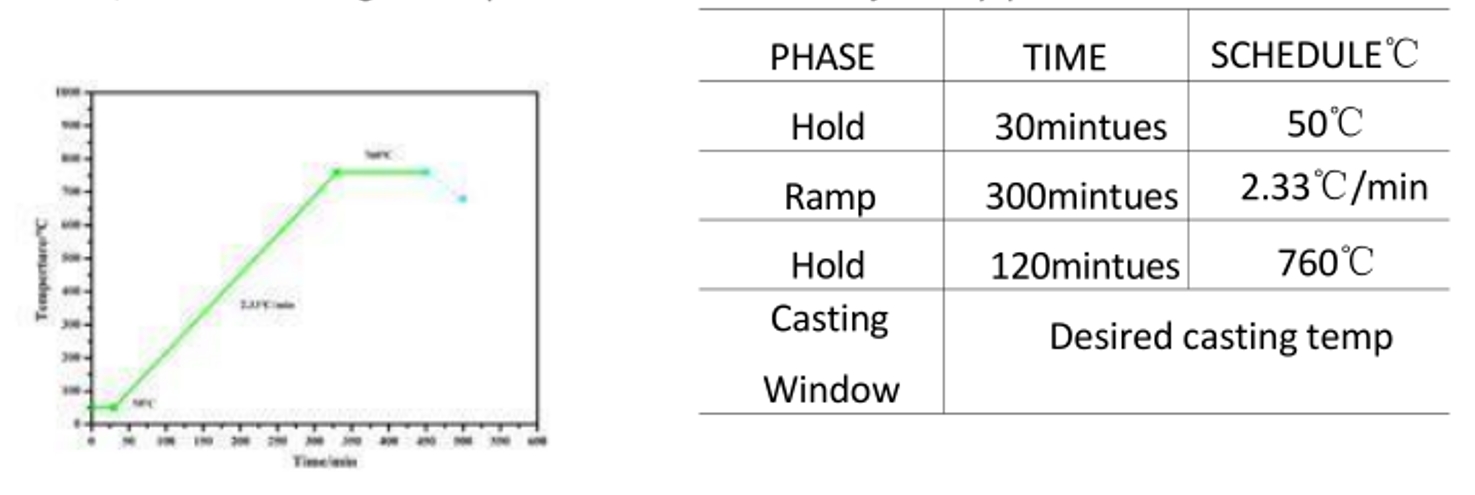

4.Standard Burnout Schedule

The following burnout schedule is designed to help reduce thermal expansion of resin in the mold, while ensuring a complete burnout for thick jewelry parts.

will become solidify at low temperature. At this point, the resin needs to be soaked in hot water until it returns to liquid and ensure the ambient temperature is above 25℃.
